Introduction
Ask any engineer who has battled metal-tool corrosion or plastic-tool warping, and they’ll tell you: fiberglass mold making can be the shortest path to trouble-free production runs. By replacing heavy, oxidation-prone tooling with lightweight, dimensionally stable FRP (Fiberglass-Reinforced Plastic) molds, OEMs in utilities, marine, construction, and agriculture gain faster cycle times, lower maintenance, and the dielectric safety metals can’t match.
Unicomposite—an ISO-certified pultrusion specialist with its own factory in China—supports these industries daily, supplying both standard profiles and custom composite parts. Their engineers often start by guiding customers through mold design choices, ensuring downstream processing runs smoothly. This step-by-step guide distills those lessons so your next project stays on schedule and on budget.

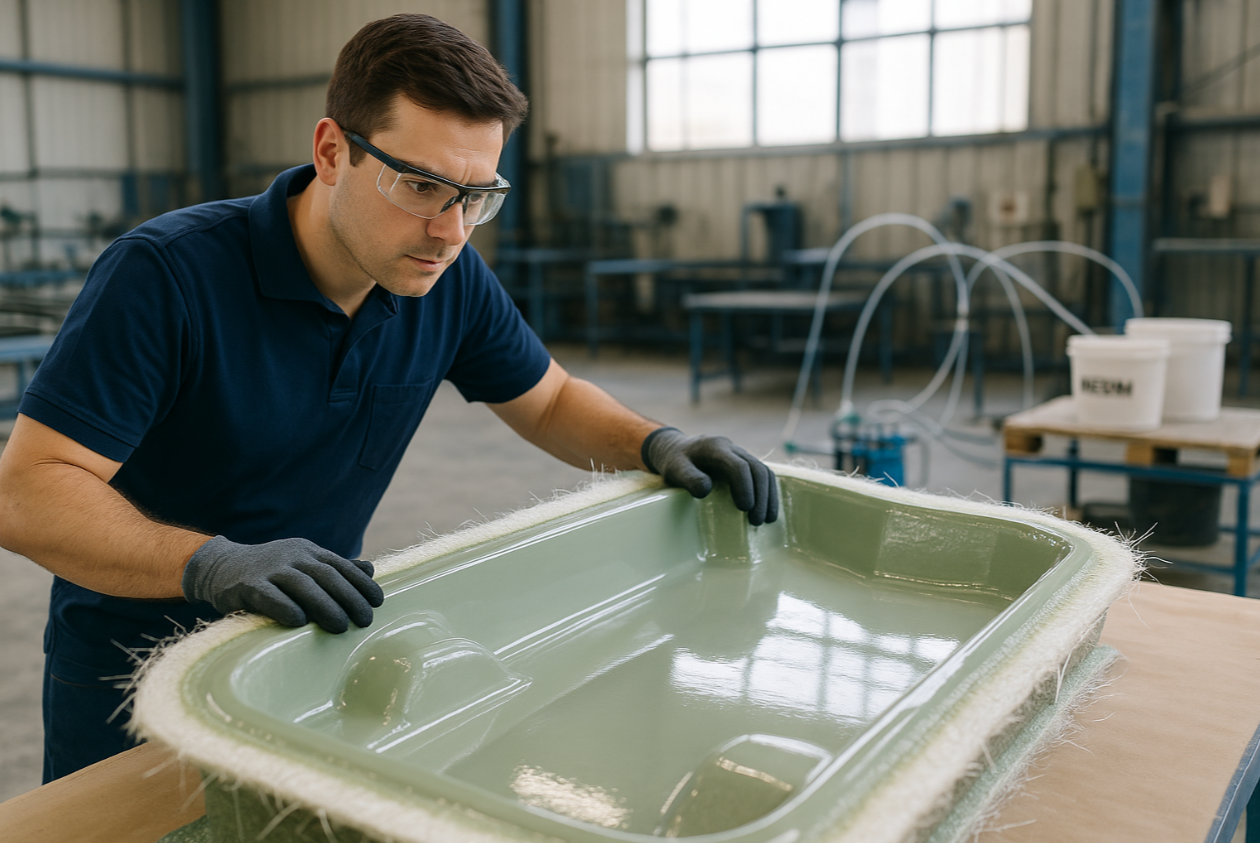

fiberglass mold making
Understanding Fiberglass Mold Making Basics
What Is Fiberglass Mold Making?
At its core, fiberglass mold making is the craft of building a rigid FRP tool—usually with layers of glass fabric and resin—around a master pattern. Once cured, the mold reproduces identical composite parts hundreds or even thousands of times without the cost or weight of steel dies.
When to Choose Fiberglass Molds Over Metal or Plastic?
| Property | Steel | Aluminum | Fiberglass |
|---|---|---|---|
| Weight (g/cm³) | 7.8 | 2.7 | 1.9 |
| Typical lead time | 6–10 weeks | 4–6 weeks | 2–4 weeks |
| Dielectric strength | N/A | Conductive | ≥17 kV/mm |
| 5-yr maintenance cost* | High | Moderate | Low |
*Composite Tooling Alliance Survey, 2024.
“For parts under 120 °C service temperature, fiberglass molds deliver the best ROI within two years,” notes independent composites consultant Maria Reeve.
Preparing for Success: Design & Material Selection
Engineering Considerations
Draft angles: ≥1.5° prevents bond-off.
Shrinkage allowance: 0.1-0.3 % for vinyl ester systems.
Surface finish: sand master to P800 before gelcoat for Class-A gloss.
Choosing Resins, Reinforcements & Core Materials
Resin
Vinyl ester resists chemicals 25 % better than orthophthalic polyester (CompositesWorld 2023 lab data).
Infuse at 35 °C for optimal flow.
Reinforcement
0°/90° stitched biaxial cloth balances stiffness and warp control.
Core options
PVC foam for thicker molds; balsa for localized ribbing.
Unicomposite validates each lay-up schedule with differential scanning calorimetry (DSC) to confirm cure profiles before full-scale fabrication—an extra safety net if your design specs are tight.
Step-by-Step Fiberglass Mold Making Process
Master Pattern & Surface Preparation
CNC-machined MDF masters hold ±0.25 mm tolerance on parts up to 3 m. After machining, coat with two layers of high-build primer and block-sand until seams vanish.
Gelcoat Application for Class-A Finish
Spray at 2.0 bar using a 2.0 mm nozzle.
Target 0.4 mm wet thickness; thicker layers tend to craze.
Let gel at 25 °C until tack-free (≈90 min) before first reinforcement ply.
Laminating & Lay-Up Techniques
| Technique | Labor hrs/m² | Void content |
|---|---|---|
| Hand wet lay-up | 1.4 | 3-5 % |
| Vacuum infusion | 0.9 | ≤1 % |
| Vacuum infusion’s lower voids translate to better surface fidelity and 15 % longer mold life in field data from a Midwest cooling-tower OEM. |
Curing, Post-Cure & De-Molding
Ramp to 60 °C at 1 °C/min, hold 4 h, then cool slowly. Post-cure at 90 °C enhances heat distortion temperature by ~10 °C. Use plastic wedges, never metal chisels, to de-mold and prevent edge chips.
Quality Assurance and Troubleshooting
Common Defects and Preventive Measures
| Defect | Root Cause | Quick Fix |
|---|---|---|
| Air entrapment | Insufficient roll-out | Use vacuum infusion or perforated film bleed |
| Print-through | Under-cured gelcoat | Post-cure at correct schedule |
| Warping | Uneven fiber orientation | Add 45° bias plies |
Testing Methods for Industrial-Grade Molds
Dimensional scan: 3D-laser verifies ±0.3 mm across entire surface.
Barcol hardness: target 45+ to resist handling damage.
Dielectric check: Unicomposite’s QC lab measures ≥17 kV/mm for utility insulator molds, ensuring field safety.
Case Study: Utility Cross-Arm Supplier Reduces Downtime
Challenge → Solution → Result
A North-American OEM producing fiberglass utility cross-arms faced 8 % scrap due to tool wear. By switching to vacuum-infused FRP molds with a vinyl ester skin coat, they cut scrap to 2 % and extended tool change intervals from 6 months to 18 months.
Key Takeaways for Similar Industries
Invest in Class-A gelcoat plus post-cure; surface stability repays itself quickly.
Schedule quarterly mold-release reconditioning rather than waiting for defects to appear.
Integrating Custom Pultrusion & Fabrication Services
How Unicomposite Adds Value Beyond Mold Making
Because Unicomposite controls pultrusion, machining, and kitting under one roof, customers can order finished FRP profiles and matching molds in the same purchase order—reducing logistics steps by up to 40 %.
Checklist for Selecting a Long-Term FRP Partner
Certifications: ISO 9001, ISO 14001, and UL-recognized flame-retardant systems.
In-house testing: Mechanical, thermal, dielectric.
MOQ flexibility: Prototype runs as low as 50 m.
Engineering support: Finite-element analysis, 3D modeling, onsite training.
Conclusion
Fiberglass mold making brings lighter tools, shorter lead times, and corrosion-free durability to industries that can’t tolerate unplanned downtime. Follow the design tips, material guidelines, and QA checks above, and you’ll launch parts faster while slashing long-term tooling costs. Ready to explore custom FRP tooling or pultruded components? Contact the Unicomposite technical team for a feasibility review or fast quote.
Frequently Asked Questions
Q1. How long does a fiberglass mold typically last in production?
With proper release maintenance and storage, an industrial FRP mold can exceed 1,000 pulls before refurbishing.
Q2. Can fiberglass molds handle high-temperature resins?
Standard vinyl-ester tools work up to ~120 °C; higher limits require post-cured epoxy or BMI systems.
Q3. What is the average lead time for a custom mold?
For a 2 m part, expect 3–4 weeks from approved CAD to finished mold when using vacuum infusion processes.
Q4. Is on-site support available during first article runs?
Yes—many suppliers, including Unicomposite, offer technician dispatch or remote video support to fine-tune parameters.
Q5. How do shipping costs compare to metal tooling?
A fiberglass mold’s lower weight often cuts freight charges by 50 % or more, especially on international routes.
