Introduction
Choosing fiberglass reinforced plastic industrial grating (FRP grating) can feel like pricing a moving target. Resin chemistry, panel geometry, and project-specific safety codes all nudge the budget—sometimes in opposite directions. As an ISO-certified pultrusion manufacturer, Unicomposite supplies both standard and custom FRP profiles from its own factory in China, giving bulk buyers clearer visibility on where each dollar goes in the supply chain. This guide unpacks the real cost levers so you can specify, budget, and negotiate with confidence.

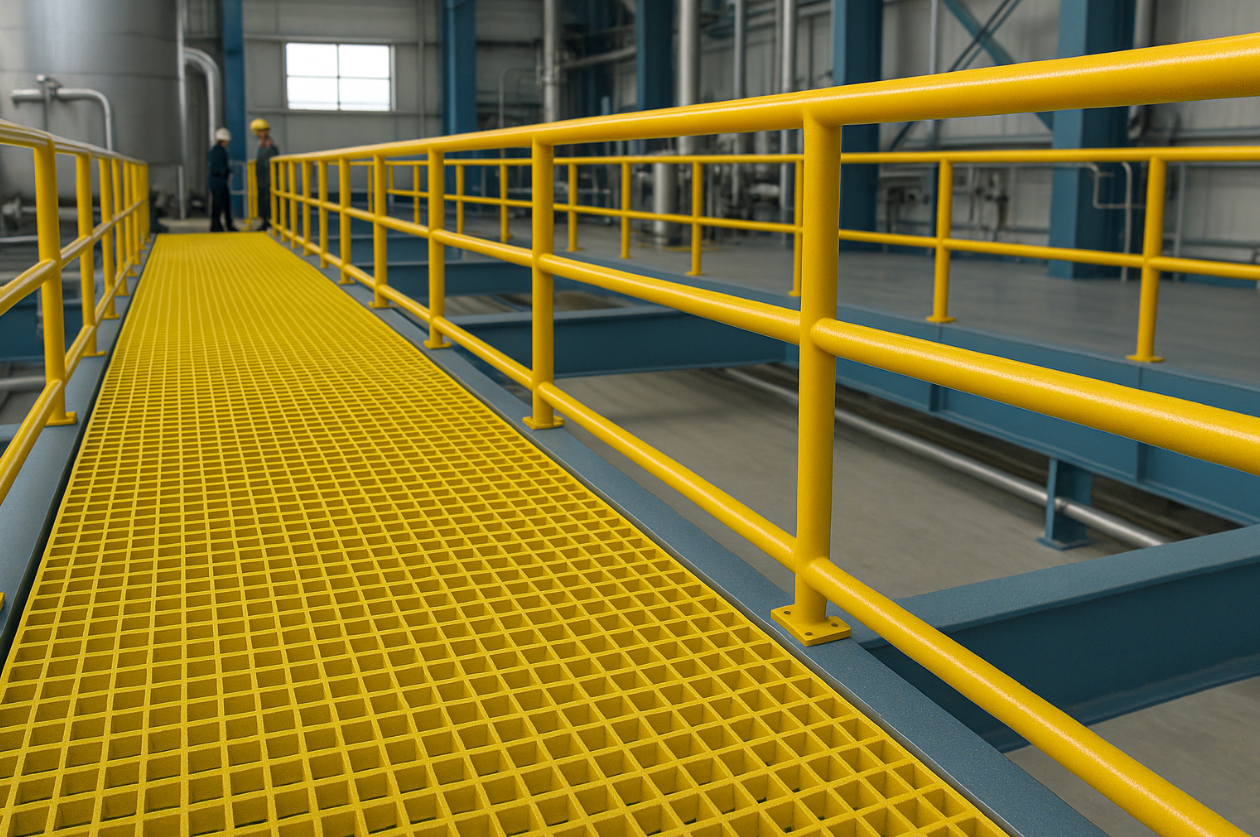

fiberglass reinforced plastic industrial grating
Key Cost Drivers in Fiberglass Reinforced Plastic Industrial Grating
Material Formulation — Resin System & Glass Content
Vinyl ester: best chemical resistance; $38–$55 / ft² (2025 global average).
Isophthalic polyester: balanced performance; $30–$42 / ft².
Orthophthalic polyester: lowest cost; $24–$35 / ft².
“For caustic environments, we pay ~25 % more for vinyl ester up front but extend grating life by 8–10 years,” notes a procurement manager at a Gulf-coast refinery (anonymized interview, April 2025).
Manufacturing Method — Molded vs. Pultruded Panels
| Attribute | Molded | Pultruded |
|---|---|---|
| Glass content | 65 % | 70–75 % |
| Typical panel sizes | 4 × 8 ft, 4 × 12 ft | 3 × 20 ft, 4 × 24 ft |
| Cost range | $26–$40 / ft² | $32–$48 / ft² |
| Pultrusion yields higher glass loading and directional strength, making it ideal for long-span platforms. Unicomposite’s continuous pultrusion lines run 24/7, so volume orders reduce unit cost by up to 12 %. |
Structural Requirements — Load Class, Panel Thickness & Panel Size
Light-duty walkways (≤125 psf): 1″ molded panels meet spec, cheapest route.
Heavy-duty mezzanines (≥500 psf): 1.5″ pultruded “I-bar” panels spike price 30–40 %.
Oversized cutouts for pipes create scrap—plan panel layouts to minimize off-cuts.
Indirect & Lifecycle Cost Factors You Shouldn’t Ignore
Installation Labor, Fasteners & Site Constraints
A 2024 study of 17 U.S. water-treatment jobs showed FRP’s lighter weight trimmed rigging labor by 18 % compared with galvanized steel. Stainless steel “M-clips” add $1.10–$1.40 each—budget one clip per 1.6 ft² for OSHA compliance.
Maintenance, Corrosion Resistance & 20-Year Service-Life Data
Dock panels installed in 2005 at an Atlantic shipyard still retain >90 % of their original flexural strength (independent lab re-test, 2024). Annual repainting and rust abatement—routine with carbon steel—are simply not in the FRP playbook.
Safety & Compliance Costs (OSHA/ANSI & ASTM E-84 fire rating)
Slip-resistant grit surfacing lowers reported slip incidents by 43 % in food-processing plants (BLS dataset 2022–2024). Fire-retardant additives push cost up $3–$5 / ft² but help meet ASTM E-84 Class 1 flame-spread <25.
FRP Grating vs. Metal Alternatives: A Total Cost-of-Ownership Lens
Up-Front Price Comparison (2025 Market Averages)
FRP grating: $28–$45 / ft² (molded vs. pultruded).
Galvanized steel bar grating: $22–$30 / ft² plus $6–$8 / ft² for hot-dip zinc renewal at year 10.
Aluminum grating: $34–$50 / ft²; prone to saltwater pitting.
10-Year ROI Case Study — Municipal Wastewater Plant
| Metric | FRP Grating | Galv. Steel |
|---|---|---|
| Installed cost (50,000 ft²) | $1.55 M | $1.35 M |
| Maintenance (10 yrs) | $0.10 M | $0.58 M |
| Downtime cost | $0.05 M | $0.26 M |
| Total 10-yr spend | $1.70 M | $2.19 M |
Expert Quote on Downtime Avoidance
“A single unplanned outage for floor-plate replacement can wipe out the savings you thought you had with cheaper steel,” says a reliability engineer at a Fortune 500 chemical plant (May 2025).
Strategies to Get the Best Value From Your FRP Grating Purchase
Standard Panel Sizes & Inventory Consolidation Tips
Order full 4 × 12 ft or 3 × 20 ft sheets and cut on site; factory pre-cutting may double machining fees. Consolidate SKUs—one grit pattern and two colors—across multiple facilities to leverage bigger tonnage.
Specifying Only the Load Capacity You Need
Avoid over-engineering. A 1.5″ I-bar panel rated for 1,000 psf often replaces a 2″ panel with unnecessary headroom, saving ~11 % on material.
Leveraging Supplier Engineering Support & Customization
Unicomposite’s in-house design team can tweak bar geometry, integrate conductive surfaces, or co-pultrude wear strips—often at no extra cost for orders ≥800 m²—because the tooling amortizes quickly across large runs.
Current Pricing Benchmarks & How to Request an Accurate Quote
Typical Price Range per ft² by Resin System & Grit Finish
| Resin + Finish | Molded | Pultruded |
|---|---|---|
| Orthophthalic, fine grit | $24–$32 | $30–$38 |
| Isophthalic, medium grit | $28–$36 | $34–$44 |
| Vinyl ester, coarse grit | $34–$42 | $40–$55 |
Add-On Costs — Cutting, Conductive Surfaces, UV Coatings
Precision water-jet cutting: $2.20–$3.50 / ft² removed
Carbon-loaded conductive resin: +$4–$6 / ft²
UV-enhanced veil: +$0.85 / ft² (extends color-fast life ~5 yrs)
Information Checklist for Fast, Precise Supplier Quotes
Panel dimensions, quantity & preferred manufacturing method.
Resin system, grit type, color & any fire-retardant or conductive needs.
Live load requirement (psf or kN/m²).
Project timeline & delivery port (Incoterms).
Attach a layout drawing—suppliers cut RFQ turnaround by 48 hours when drawings are included.
Conclusion
Material formulation, manufacturing process, and lifecycle factors ultimately decide whether fiberglass reinforced plastic industrial grating costs $26 or $55 per square foot—and whether it pays back twice its premium over steel within a decade. Ready to price your next platform or walkway? Contact Unicomposite’s engineering team for a tailored specification review and a line-item bulk quotation that removes the guesswork.
Frequently Asked Questions
Q1. How long does FRP grating typically last in a corrosive environment?
Properly specified panels often retain structural properties for 20 years or more, even in salt-spray or chemical wash-down conditions.
Q2. Can I order custom colors or grit patterns?
Yes—most pultruders can color-match RAL shades and offer fine, medium, or coarse grit without affecting structural ratings; expect modest minimum-order quantities.
Q3. What information should I include in a request for quote (RFQ)?
Panel size, quantity, resin type, required load rating, any fire or electrical specs, and the delivery location help suppliers provide accurate pricing fast.
Q4. Is FRP grating fire-safe?
Fire-retardant formulations that meet ASTM E-84 Class 1 are widely available; they cost slightly more but satisfy most industrial safety codes.
Q5. How does shipping affect the total cost?
Because FRP weighs roughly one-quarter of steel, freight charges per square foot are lower; consolidating full-length panels into standard containers maximizes that benefit.
