Introduction
Standing on a wind‑swept cooling‑tower platform, a maintenance engineer wonders, “What is FRP steel grating, and why did my spec sheet switch from galvanized bar grating to this composite?” That single question, asked every day by project managers and buyers, frames a larger inquiry: how to balance safety, longevity, and cost in corrosive or electrically sensitive environments.
Industry insight: “Our first switch to fiberglass grating in 2016 cut annual walk‑tray maintenance by 70 %,” notes an anonymous utilities reliability supervisor.
For readers who need a concise, practical answer, this guide explains what is FRP steel grating, how it’s manufactured, when it outperforms metal, and how suppliers such as Unicomposite—an ISO‑certified pultrusion manufacturer with its own Chinese factory—support custom profiles for demanding projects.

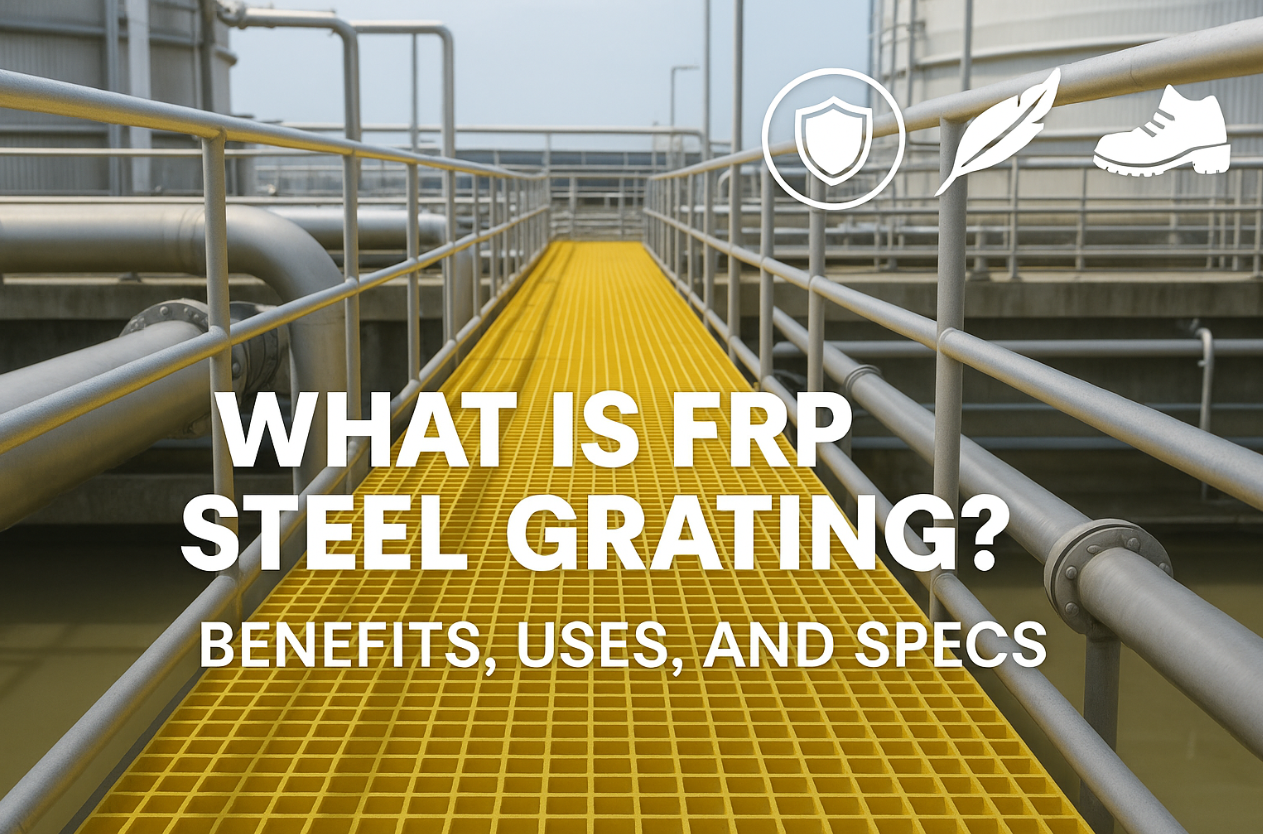

what is frp steel grating
What Is FRP Steel Grating Made Of?
Fiberglass Rovings, Resin Systems & Pultrusion Basics
Fiberglass rovings (continuous strands) are pulled through a bath of thermosetting resin—typically isophthalic or vinyl ester—for corrosion resistance. The wet bundle enters a heated steel die, curing into stiff bars. These bars are then assembled into panels by mechanically or adhesively bonding cross‑rods, forming a one‑piece grid. The process is called pultrusion, which creates consistent fiber alignment for high tensile strength along the load direction.
FRP vs. Welded Steel Bar Grating: Weight, Conductivity & Corrosion
| Property | Pultruded FRP Grating | Welded Steel Bar Grating |
|---|---|---|
| Density | ~1.9 g/cm³ (≈¼ steel) | 7.85 g/cm³ |
| Corrosion | Resistant to acids, alkalis, salt‑spray | Requires galvanizing & repainting |
| Electrical Conductivity | Non‑conductive (dielectric) | Highly conductive |
| Magnetic Signature | None | Ferromagnetic |
| Typical Service Life | 20–30 yrs outdoors | 5–12 yrs (coated) |
Performance Advantages That Influence Buying Decisions
Corrosion‑Resistance Data in Acid, Alkali & Salt‑Spray Environments
Independent ASTM B117 tests show vinyl‑ester FRP panels losing <0.7 % weight after 1,000 h salt‑spray, where carbon‑steel coupons pit to >100 µm depth. Such metrics matter for offshore platforms, desalinization plants, and chemical processing lines.
Load‑Bearing Capacity: Span Tables, Safety Factors & Live‑Load Stats
A typical 38 mm‑thick, 50 mm‑pitch pultruded panel carries 5.0 kN/m² at a 600 mm span with a 1/200 deflection limit. Engineers should confirm manufacturer span charts and apply project‑specific safety factors (often 2.5 for pedestrian traffic, 4.0 for vehicular).
Slip Resistance, Fire Retardance & Dielectric Properties
Silicon‑carbide grit bonded to the top flange yields a Coefficient of Friction >0.65 even when wet. Fire‑retardant formulations meet ASTM E84 Class 1 (≤25 flame‑spread). The glass‑reinforced polymer matrix offers a dielectric strength up to 25 kV/mm, making FRP an excellent choice near switchgear.
Industry Applications & Proof Points
Case Study: Waste‑Water Plant Walkways (anonymized)
A Midwestern municipal utility replaced 430 m² of corroded steel walkways with pultruded FRP. Installation time fell by 40 % thanks to lightweight panels, and maintenance costs dropped $18,000 per year, primarily from eliminated repainting.
Power Utility Cable Trenches & Substation Platforms
Because FRP is non‑sparking and non‑conductive, it prevents step‑ and touch‑potential hazards common in substations. Load ratings accommodate tool carts and light vehicles without adding ground faults.
Agriculture, Aquaculture & Marine Decking
Farms choose FRP to avoid manure‑induced corrosion; fish hatcheries and docks value its UV‑stable resins and barefoot‑safe surfaces.
Specification Checklist for Engineers
Selecting Mesh Size, Thickness & Surface Finish
Mesh openings: 38 × 38 mm is standard; 19 × 19 mm offers tighter heel‑proof spacing.
Thickness: 25 mm for light pedestrian traffic; 38 mm or 50 mm for heavy utility loads.
Surface: Meniscus, grit‑surfaced, or covered plate depending on slip and hygiene needs.
Fasteners, Hold‑Down Clips & Integration with Steel Support Frames
Stainless saddle clips or M‑clips secure panels without galvanic corrosion. Pre‑drilled holes speed installation. When mating to existing steel frames, use dielectric shims to avoid crevice attack.
Standards Compliance: ANSI/NAAMM FG‑1, EN, ISO & ASTM Tests
Look for certificates covering ANSI/NAAMM FG‑1 load testing, ASTM D635 flame resistance, and ISO 9001‑backed quality systems—credentials that suppliers such as Unicomposite readily provide.
Lifecycle Economics vs. Galvanized Steel
Up‑Front Cost, Maintenance Cycles & Downtime Savings
FRP panels can cost 1.3–1.8× galvanized steel at purchase. Yet plants typically recover that delta within three maintenance cycles because fiberglass never requires sand‑blasting, re‑galvanizing, or frequent replacement.
Sustainability Metrics: Carbon Footprint & ESG Reporting
An LCA comparison by a European consulting firm (public domain) shows pultruded fiberglass grating providing a 22 % lower Global Warming Potential (GWP) over 25 years due to reduced recoating, shipping weight, and landfill waste.
Supplier Vetting & Customization Options
Factory Capability, ISO‑Backed QC & Engineering Support (spotlight on Unicomposite)
When evaluating vendors, inspect pultrusion lines, resin mixing controls, and post‑cure ovens. Unicomposite’s vertically integrated factory permits tight QC loops—fiber tension, glass‑to‑resin ratios, and automated cutting—backed by third‑party ISO audits.
Custom Fabrication, Kitting Services & Lead‑Time Questions
Industrial projects often need plate‑cut edges, circular duct cutouts, or prefabricated stair treads. A competent supplier offers CAD‑to‑panel kitting, export crating, and 4–6 week lead times for standard resin systems.
Conclusion
From chemical plants to coastal boardwalks, what is FRP steel grating resolves into a simple formula: glass fibers + high‑performance resin + pultruded precision = lighter, safer, longer‑lasting platforms. Engineers gain corrosion immunity, safety officers cut slip hazards, and CFOs enjoy lifecycle savings.
Ready to turn the spec sheet into a purchase order? Contact the Unicomposite engineering team for design assistance, sample span tables, or a bulk quotation tailored to your project’s environment and load criteria.
Frequently Asked Questions
Q1. How long does FRP grating actually last outdoors?
High‑quality vinyl‑ester FRP routinely exceeds 25 years with minimal color shift and no structural decay when installed away from UV‑intensifying glass or aggressive solvents.
Q2. Can FRP panels handle forklift traffic?
Yes—select a 50 mm‑thick panel with appropriate I‑bar spacing, verify manufacturer span tables, and use a steel support frame under wheel paths.
Q3. Is FRP safe for food‑processing areas?
Choose NSF‑certified resins and a covered‑plate top surface; regular wash‑down cycles will not degrade the material.
Q4. What customization options are available?
Suppliers can cut radiused corners, embed logo plates, or mold grit levels per zone. Unicomposite also offers pre‑drilled panels and color‑matched resin.
Q5. How do I recycle end‑of‑life FRP panels?
Many regions accept ground FRP as cement‑kiln feedstock, offsetting virgin raw materials and reducing landfill.
