Introduction
Picture an operator pushing a 2‑ton maintenance cart across an elevated platform. The only thing between that load and a costly shutdown is the grating underfoot. Knowing exactly how much weight a fiberglass grating walkway can hold is therefore a matter of safety, compliance, and budget control.
As an ISO‑certified pultrusion manufacturer, Unicomposite has spent two decades engineering FRP walkways for power utilities, water‑treatment plants, chem‑processing sites, and OEMs worldwide. Drawing on field data and international standards, this guide answers the critical question—how much weight can fiberglass grating walkway hold—and shows you how to size, specify, and maintain panels that will perform for decades.

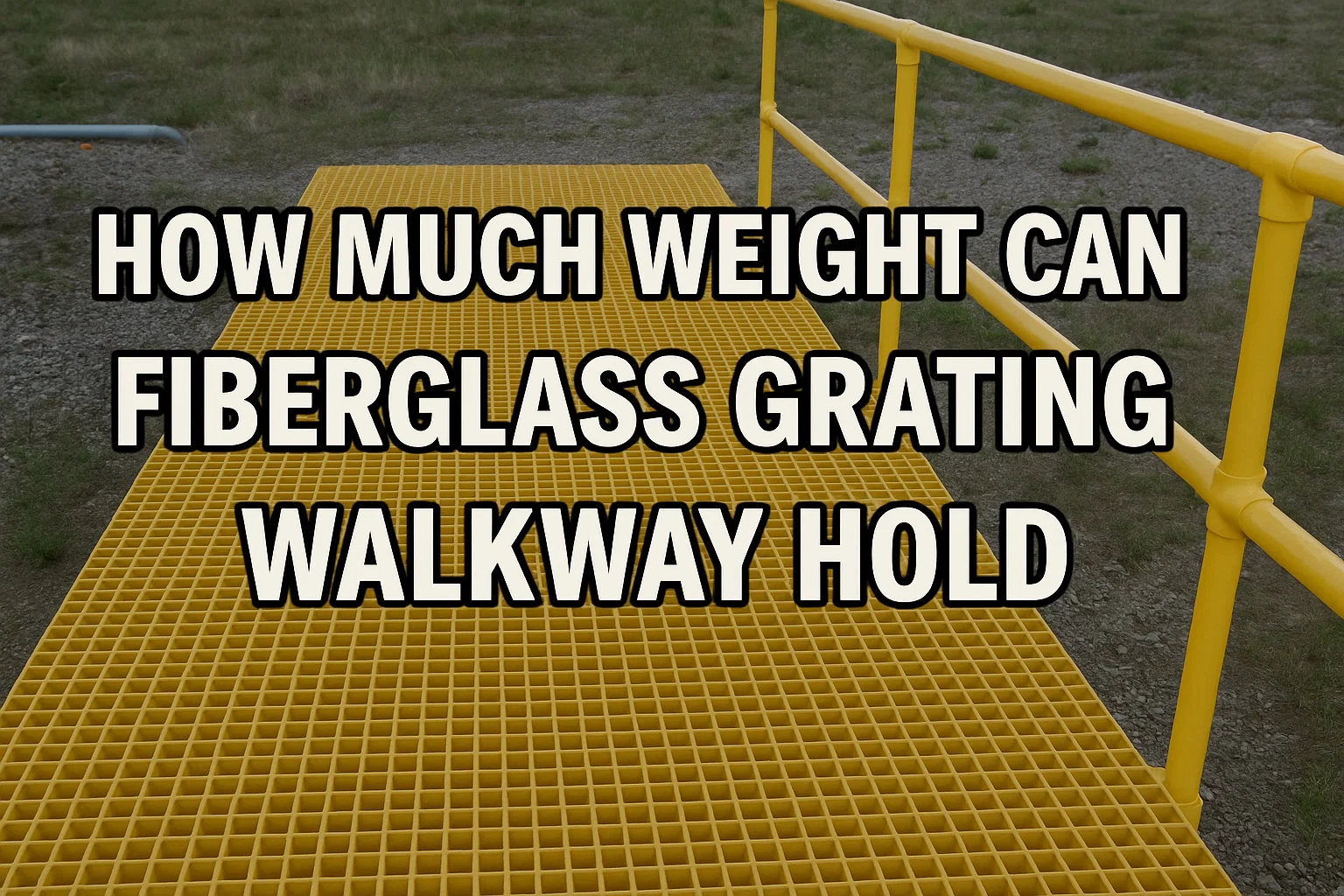

how much weight can fiberglass grating walkway hold
Understanding Load Ratings for Fiberglass Grating Walkways
Uniform vs. Concentrated Loads—Key Definitions
Uniform load (UL) distributes force evenly across the entire panel, expressed in pounds per square foot (psf) or kN/m².
Concentrated load (CL) focuses force on a smaller footprint—think caster wheels or pipe stands—measured in pounds or kilonewtons at mid‑span.
Designers must check both because a walkway that meets a 500 psf uniform rating might still fail when a 400‑lb wheel crosses a single bearing bar.
Which Standards Govern Load Testing?
ANSI/NAAMM FG‑1: North America’s benchmark for molded & pultruded grating deflection limits (L/200 at 100 psf).
OSHA 1910.29: Mandates a minimum 50 psf live load for elevated platforms plus concentrated load checks.
EN 13706: Europe’s pultruded profile standard, classifying grating by modulus and strength.
Statistic: The FG‑1 table lists a 38 mm (1.5 in) pultruded I‑bar that withstands 636 psf (30 kN/m²) on a 600 mm span before reaching 6 mm deflection—more than 12 × OSHA’s minimum.
“We design walkways to the stricter of OSHA or site‑specific requirements, then apply a minimum 2.5 × safety factor,” notes Chris Daley, P.E., independent structural engineer.
Factors That Influence How Much Weight Fiberglass Grating Can Hold
Resin System, Glass Content, and Bar Geometry
Higher glass volume boosts tensile strength, while isophthalic or vinyl‑ester resins resist chemical attack that can erode capacity over time. Pultruded I‑bars carry 30–40 % more load than T‑bars of equal height.
Span Length, Support Method, and Fastener Type
Doubling the span length quarters the uniform load rating. Clip spacing matters, too: a panel that performs at 600 mm clip centers may deflect 20 % more at 900 mm.
Environmental Stressors—Temperature, UV, Chemicals, Fire
Temperature swings above 60 °C reduce modulus by ~10 %.
Some acids attack polyester resin but leave vinyl‑ester untouched.
ASTM E84 Class 1 fire‑retardant additives slightly lower flexural strength—designers compensate with thicker bars.
“Never ignore cumulative stress: load, UV, and chemical creep create a perfect storm if you skip annual inspections,” warns Daley.
Typical Load Capacities by Grating Type and Thickness
Molded Grating Load Range (25 mm–51 mm)
| Thickness | Max Span* | Uniform Load at L/200 | Typical Use |
|---|---|---|---|
| 25 mm | 610 mm | 300 psf (14 kN/m²) | Catwalks, HVAC service pads |
| 38 mm | 915 mm | 500 psf (24 kN/m²) | Clarifier bridges |
| 51 mm | 1220 mm | 600 psf (29 kN/m²) | Heavy‑duty trench covers |
| *Max span assumes two‑point bearing support. |
Pultruded Grating Load Range (I‑Bar, 51 mm)
610 mm span → 900 psf uniform
915 mm span → 600 psf uniform
1220 mm span → 300 psf uniform
Case Study: 3‑Ton Cart on a Waste‑Water Walkway
A Gulf Coast treatment plant needed a 1.5 m‑wide platform to move a 3‑ton lime‑slurry cart. Using Unicomposite 51 mm I‑bar panels@750 mm span, tests showed only 4 mm mid‑span deflection under 6 kN wheel loads—well within FG‑1 limits. Five years later, inspections report no measurable creep or chemical bloat despite pH 11 runoff.
Fiberglass vs. Steel Grating—Capacity, Weight & Lifecycle Trade‑Offs
Strength‑to‑Weight Ratio and Deflection Limits
Pultruded FRP offers 3–4 × the strength‑to‑weight ratio of galvanized steel. A 38 mm FRP panel weighs ~12 kg/m² versus 45 kg/m² for steel bar grating—slashing crane time and sub‑structure cost.
Corrosion, Dielectric Safety, and Maintenance Downtime
Steel loses up to 30 % section thickness in 10 years near saltwater splash zones.
FRP remains inert, saving an estimated US $80 per m² in repainting every 5 years.
Non‑conductive FRP eliminates grounding work in substations and battery rooms.
Lifecycle statistic: An independent LCCA showed FRP walkways cost 37 % less than steel over a 20‑year horizon when corrosion maintenance and downtime are included.
Engineering Tips to Maximize Walkway Capacity
Optimize Panel Size and Support Spacing for Your Load Map
Map wheel and point loads on a grid.
Choose panel thickness so maximum calculated deflection ≤ L/200.
Reduce spans or add stringers rather than overspecifying thickness—often cheaper.
Specify Clips, Hold‑Downs, and Edge Banding Correctly
Use M‑type clip sets every 450 mm along supports for molded grating; C‑type saddle clips for pultruded panels.
Edge band cut panels to preserve load paths.
Torque stainless hardware to 18 N·m to prevent chatter without crushing ribs.
Routine Inspection & Non‑Destructive Testing Schedule
Based on field checklists Unicomposite technicians use:
Quarterly visual: look for chips ≥ 3 mm or resin blisters.
Annual hammer tap: listen for dull thuds indicating delamination.
Five‑year ultrasonic thickness (UT) on high‑traffic zones.
When to Engage a Manufacturer or Structural Engineer
Scenarios That Require Custom Testing
Point loads > 1 kN on footprints < 100 mm²
Dynamic loads (pallet‑jacks, forklifts, seismic motion)
ATEX‑rated or fire‑critical zones needing bespoke resin formulations
How Unicomposite Provides FEA Modeling, Load Testing, and Certification Support
Early engagement allows our engineers to run Finite Element Analysis, prototype samples, and deliver third‑party witness tests. That data feeds straight into your project documentation packet, shortening approval cycles.
Conclusion
Fiberglass grating can safely handle everything from a technician’s footfall to multi‑ton carts—provided you match panel type, thickness, and span to the actual load case, follow recognized standards, and inspect regularly. Armed with the data above, you can draft clear specs, slash over‑engineering costs, and keep your people safe. Ready to validate your load map or need a rapid quote? Contact the Unicomposite engineering team today—we’ll turn your numbers into a certified solution.
Frequently Asked Questions
How do I calculate the right span for my load?
Start with your heaviest uniform or concentrated load, locate the value in an ANSI/NAAMM FG‑1 table for the panel thickness you prefer, then adjust support spacing until deflection stays within L/200.Can fiberglass grating handle forklift traffic?
Standard molded panels are not designed for forklift axles. Specify heavy‑duty pultruded panels or solid‑top FRP plates tested to your wheel load and axle spacing.What clip spacing is best for high‑vibration areas?
Use hold‑downs every 300–450 mm along supports and at all panel joints; closer spacing controls bounce and noise on pump decks.Is FRP grating affected by UV exposure?
Quality panels include UV inhibitors and a surfacing veil. Expect slight color fade but negligible strength loss when inspected and cleaned per the manufacturer’s schedule.How quickly can Unicomposite supply custom‑cut panels?
Typical lead time for stock profiles is 2 weeks; custom geometry or color runs average 4–6 weeks, including QA testing and export crating.
