Pultruded vs Molded FRP Grating: Key Differences & Uses

Specifying the wrong grating type on a corrosive industrial platform does not just create a performance problem — it creates a replacement cost problem. Engineers who install standard molded panels on a long-span mezzanine, or specify pultruded grating over a chemical trench without joints, often discover the mismatch only after deflection or chemical ingress has already occurred. Pultruded and molded FRP grating share the same base material, but they are engineered differently, perform differently, and suit fundamentally different applications.

This article breaks down exactly how each type is made, where each performs best, and which specification parameters you need to confirm before placing an order. Unicomposite manufactures both pultruded and molded FRP grating on its own production lines — the comparisons below reflect real manufacturing and field application experience, not catalog descriptions.

---

What Is Pultruded FRP Grating?

Manufacturing Process

Pultruded FRP grating is produced through a continuous pultrusion process. Fiberglass rovings are pulled through a resin bath, then drawn through a heated steel die that shapes and cures the profile in a single, continuous pass. The result is a bearing bar with precisely controlled dimensions and a highly uniform fiber-to-resin ratio throughout its cross-section.

On a pultrusion line, fiber tension at die entry is monitored continuously — even small variation in pull speed affects resin distribution and final bar straightness. That level of dimensional control is harder to achieve than it appears from the outside, and it directly determines whether finished panels meet structural load tables in service. Because fibers run continuously along the length of the bar, reinforcement aligns in one direction — and that directional consistency is the defining structural feature of this product type.

Structural Profile

Pultruded grating panels are assembled from individual bearing bars — typically I-bar or rectangular profiles — locked together with crossbars at regular intervals. Load transfers along the bearing bar span, not across it. This geometry delivers high strength-to-weight performance in the primary load direction.

Per ASTM D638 testing, pultruded FRP bearing bars commonly achieve tensile strengths in the range of 200–300 MPa along the fiber axis. Under BS EN 13706 classification, pultruded profiles rated E23 or higher are suitable for structural platform loading in industrial environments. For procurement managers comparing FRP to steel grating, pultruded panels typically weigh 70–75% less than equivalent carbon steel sections while maintaining comparable span capacity — a meaningful advantage wherever dead load on the supporting structure is a design constraint.

---

What Is Molded FRP Grating?

Manufacturing Process

Molded FRP grating is produced by weaving continuous fiberglass rovings — alternating warp and fill strands — through an open mold, then saturating the entire assembly with resin and curing it as a single unit. There are no mechanical joints, no adhesive bonds between bars, and no secondary assembly steps.

The one-piece construction is not a minor manufacturing detail. It directly determines how the panel behaves under load, in chemical exposure, and during field modification — in ways that mechanically assembled panels cannot replicate.

Structural Profile

Because warp and fill fibers are integrated at every intersection, molded grating distributes load equally in both the longitudinal and transverse directions. You get approximately equal strength on both axes — a meaningful advantage in applications where load direction is unpredictable or omnidirectional.

The absence of joints also eliminates the primary point of chemical ingress that affects assembled panels. Vinyl ester resin panels tested per ASTM C581 immersion testing — which evaluates resin retention of mechanical properties after prolonged contact with specific chemical media — retain ≥80% of original flexural strength after 12-month immersion in 25% sulfuric acid at ambient temperature. Polyester resin panels do not consistently meet that threshold in the same environment. Ask your supplier for ASTM C581 test reports matched to your specific service chemical before finalizing resin selection.

---

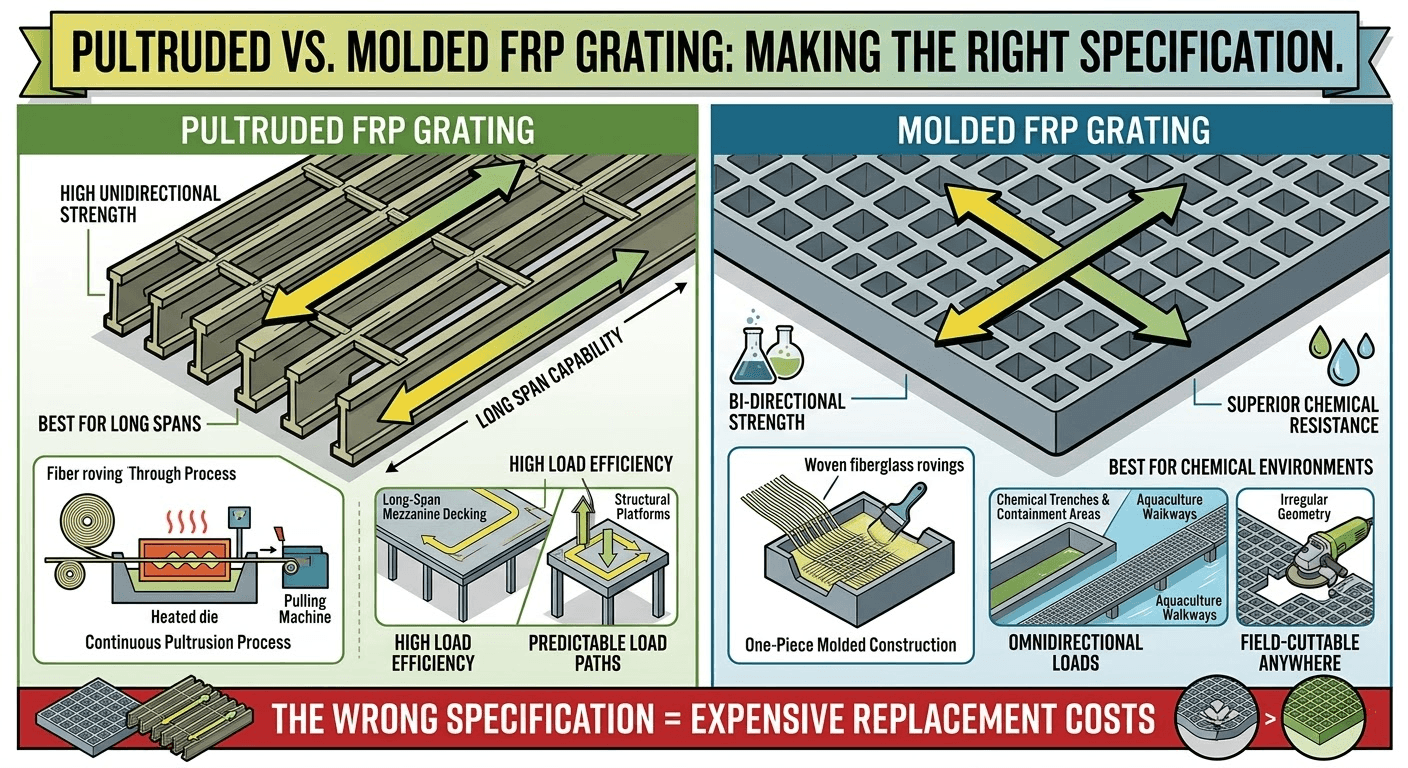

Pultruded vs Molded FRP Grating: Head-to-Head Comparison

The performance differences between the two types are consistent enough to support clear selection rules for most standard applications. The table below compares the key decision factors procurement managers and engineers typically evaluate:

Parameter	Pultruded FRP Grating	Molded FRP Grating
Load Capacity (UDL, 50 mm depth, 1.0 m span)	Up to 7.5 kPa	Up to 4.8 kPa
Recommended Max Span	Up to 2.0 m for structural grades	≤1.2 m typical
Panel Weight (approx.)	10–14 kg/m²	14–18 kg/m²
Chemical Resistance	Good — resin-dependent	Excellent — joint-free construction reduces ingress risk
Impact Resistance	Moderate — joint interfaces under severe point impact	Higher — one-piece matrix absorbs impact across full panel
Field Cutability	Cut between bearing bars only; seal cut edges	Cut anywhere without structural compromise
Customization	Standard profiles; custom lengths cut to order	Wide mesh and depth options; complex shapes feasible
Typical Lead Time	Shorter for standard profiles	Slightly longer for non-standard mesh sizes

Values above reflect typical ranges for standard commercial grades. Project-specific performance must be confirmed against supplier test reports and applicable standards; request engineering load tables for your span and load combination.

For long-span structural platforms where the load path is defined and predictable, pultruded grating is the more efficient choice. For chemical environments, trench covers, and applications requiring field modifications, molded grating’s joint-free construction and bi-directional strength deliver better long-term reliability.

---

When to Choose Pultruded FRP Grating

High-Load, Long-Span Platforms

Pultruded grating is the correct specification when span length and concentrated load are your primary design constraints. Industrial walkways, mezzanine decking, stair treads, and cable tray covers all place predictable, directional loads on the grating panel — exactly the condition that pultruded geometry handles most efficiently.

In electrical substation installations, engineers routinely specify pultruded grating for cable tray covers and elevated walkways spanning 1.5 m or more, specifically because the bearing bar geometry provides the required deflection performance without intermediate support. At a 1.5 m span under a 3.0 kPa uniform load, a 50 mm pultruded panel typically deflects less than L/100 — within accepted platform design limits. The dielectric properties of FRP are an added benefit in high-voltage environments where metallic grating creates safety risks.

Structural and Architectural Applications

Beyond walkways, pultruded profiles serve as primary structural members in cooling tower framing, bridge decking components, and OEM fabrications where the strength-to-weight ratio of a unidirectional composite is a genuine engineering advantage over aluminum or steel. If your application involves a defined load path and a need to minimize dead load on the supporting structure, pultruded FRP grating and profiles are worth evaluating against conventional materials.

The structural efficiency of pultruded grating in defined-span applications makes it the default specification for most heavy industrial platform designs.

---

When to Choose Molded FRP Grating

Trench Covers and Chemical Containment Areas

In wastewater treatment plants, electroplating facilities, and chemical processing environments, the grating sits in or over aggressive media — sometimes continuously. Molded grating’s one-piece construction means there are no bar-to-crossbar interfaces where resin can crack, where chemical can wick inward, or where corrosion can initiate.

For trench cover applications specifically, molded panels sit flat without the risk of individual bearing bars rotating or shifting under foot traffic — a failure mode that occurs in mechanically assembled panels as fasteners loosen over time. Specifying vinyl ester resin for the molded panel adds measurable chemical resistance appropriate for strong acid or alkali service, with ASTM C581 data available to confirm compatibility with your specific process chemical.

Curved Surfaces and Custom Cutouts

Field installation introduces irregular geometry that drawings rarely fully anticipate. In a fish farm walkway project, for example, panels around feed hopper penetrations required irregular cutouts on three sides — molded panels were cut on-site with an angle grinder without compromising panel integrity, because no structural bearing bar runs in a fixed direction through the panel. With pultruded grating, the same cuts would have required pre-fabrication planning to avoid severing load-carrying bars.

This flexibility makes molded grating the practical choice for aquaculture walkways, agricultural irrigation channel covers, and marine dock surfaces where platform geometry is irregular and field modification is part of the installation scope.

---

Key Specification Parameters to Confirm Before Ordering

Knowing when to specify each grating type narrows your decision — but the remaining specification parameters determine whether the panel you receive actually performs as designed. Resin type and fire rating are the two parameters most commonly omitted from early-stage RFQs, and both affect material cost and lead time significantly.

The table below covers the inputs that affect both manufacturing lead time and engineering performance:

Parameter	Options / Range	Why It Matters
Mesh Opening Size	25×25 mm, 38×38 mm, 50×50 mm (common)	Affects drainage rate, foot traffic safety, and load distribution
Panel Thickness / Depth	25 mm, 38 mm, 50 mm (molded); varies by profile (pultruded)	Determines load rating and deflection at span
Load Rating	Uniform distributed load (UDL) in kPa or psf	Must match project structural calculations
Resin System	Polyester / Vinyl ester / Phenolic	Polyester = general use; vinyl ester = chemical resistance; phenolic = fire performance
Surface Finish	Gritted (anti-slip) / Concave / Smooth	Safety requirement for wet or oily environments
Fire Rating	ASTM E84 Class 1 (Flame Spread ≤25) / UL94 / FM Approval	North American project specs frequently mandate Class 1 minimum
Color	Standard yellow, grey, green; custom available	Zoning, safety marking, or architectural requirements

Ranges reflect typical values for standard commercial grades; project-specific performance must be confirmed against supplier test reports and applicable standards.

Getting these parameters confirmed in writing before requesting a quote eliminates the most common source of project delays — resin or mesh substitutions discovered only after the fabrication order is placed. Unicomposite’s ISO-certified production covers both pultruded and molded grating lines, which means specification changes between types — or hybrid orders combining both — are handled within a single supply relationship, without splitting procurement across multiple vendors.

---

Conclusion

Choosing between pultruded and molded FRP grating comes down to four factors: span length, load direction, chemical exposure, and field modification requirements.

• Specify pultruded grating when you need high load capacity over a defined span, minimal dead load, and a profile that behaves like a structural member.
• Specify molded grating when the environment is chemically aggressive, the load is omnidirectional, or the installation requires on-site cutting without pre-planned cutout positions.
• Confirm resin type and fire rating at the inquiry stage — both affect panel cost and lead time, and neither can be changed after fabrication without reordering.
• Provide complete specification data upfront — mesh size, depth, load rating, resin, surface finish, and fire rating — to avoid substitutions and revision cycles after the quote is issued.

Both grating types deliver the core FRP advantages: corrosion resistance, low maintenance, light weight, and long service life. The difference is in how those properties are optimized for your specific load path, chemical environment, and installation conditions.
