Durable, lightweight, and modular water storage solution. SMC (Sheet Molding Compound) GRP panels for safe and clean water containment.
Features
1. Food-grade SMC GRP
2. Highly customizable (From 1 m³ to over 1,000 m³)
3. Anti-corrosion, UV-resistant, and resistant to algae growth
4. Bolt-assembled modular design for easy transportation
5. Meets international drinking water standards

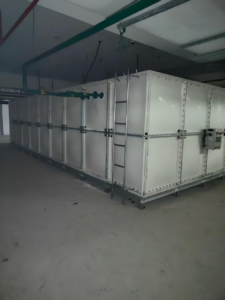

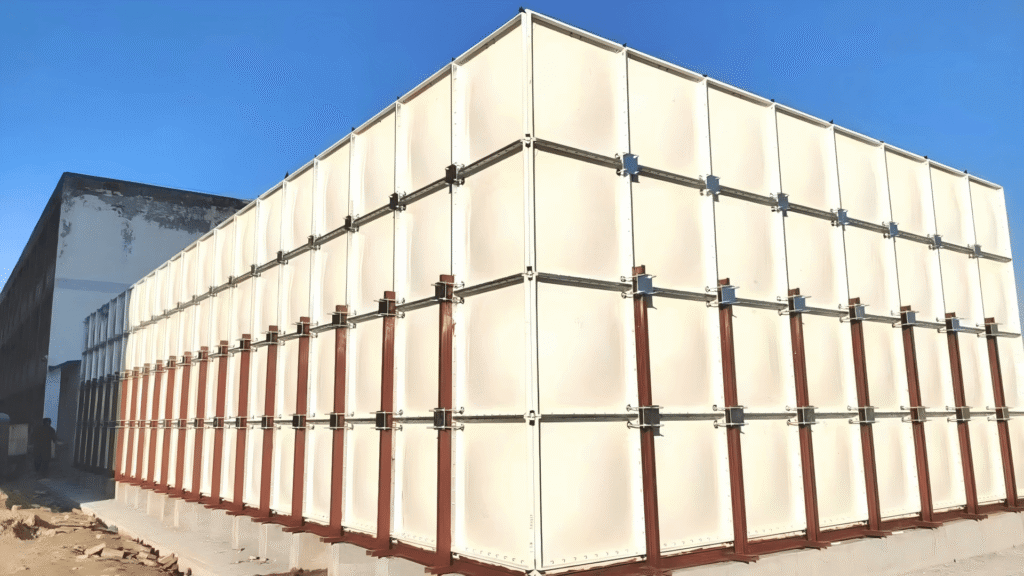

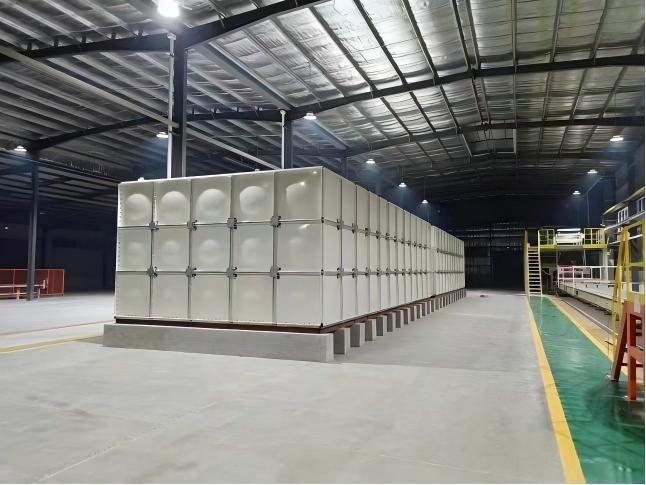

UNICOMPOSITE’s FRP (Fiberglass Reinforced Plastic) panel water tanks, also known as GRP (Glass Reinforced Plastic) or SMC (Sheet Molding Compound) water tanks, represent a modern solution for large-scale water storage. Manufactured using high-temperature, high-pressure molding of SMC sheets, these panels offer excellent strength, hygiene, and durability.

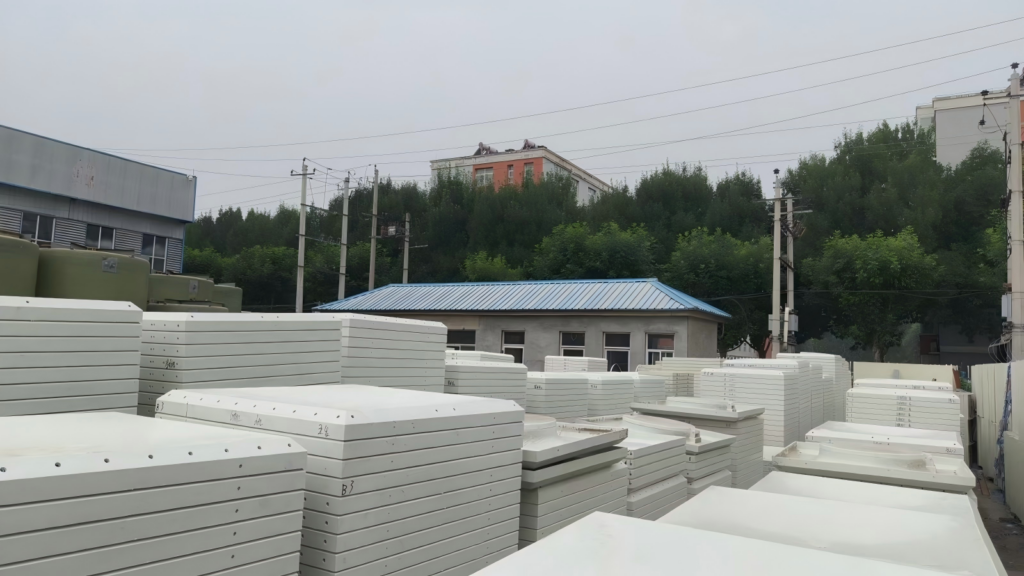

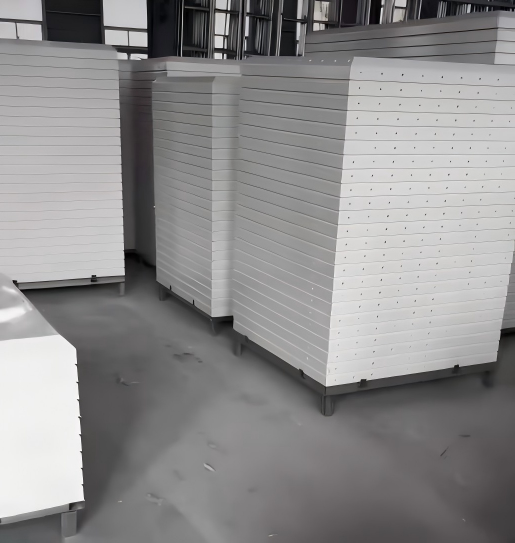

Unlike traditional concrete or welded steel tanks, our FRP modular tanks are assembled on-site using standard panels, typically measuring 1 × 1 m, 1 × 0.5 m, or 0.5 × 0.5 m. The panels are bolted together with non-toxic sealing materials. This modular design allows for easy transportation, rapid installation in restricted spaces, and flexible capacity expansion in the future.
| Specification | |
|---|---|
| Panel Material | SMC, UPR, fiberglass, and fillers |
| Standard Panel Sizes | 1000 mm × 1000 mm, 1000 mm × 500 mm, 500 mm × 500 mm |
| Panel Thickness | 4 mm to 20 mm, determined by the tank height and panel position |
| Tensile Strength | ≥ 60 MPa |
| Bending Strength | ≥ 100 MPa |
| Water Absorption | ≤ 0.5% |
| Working Temperature | −40°C to 80°C |
Common Applications
Due to their versatility and hygiene standards, UNICOMPOSITE FRP water tanks are widely utilized across various sectors globally. Key applications include:
1. Commercial & Residential
Potable water storage for hotels, schools, hospitals, office buildings, and residential complexes.
2. Industrial Applications
Process water, cooling water, and general fluid storage for manufacturing plants and industrial facilities.
3. Fire Fighting Systems
Reliable reserve water storage tanks for emergency fire sprinkler and hydrant systems.
4. Agriculture & Irrigation
Rainwater harvesting and storage for farming, greenhouses, and livestock watering.
Complete Accessories Supplied
We provide a complete set of accessories required for the assembly and functioning of the FRP water tank, ensuring a hassle-free installation process.
1. Structural Support
Hot-dipped galvanized steel base frame (C-channel), internal tie rods, and external reinforcements.
2. Fasteners
High-grade bolts, nuts, and washers, with hot-dipped galvanized or stainless steel SS304/316 options.
3. Sealing
Non-toxic EPDM sealing tape or gasket specially designed for potable water.
4. Fittings

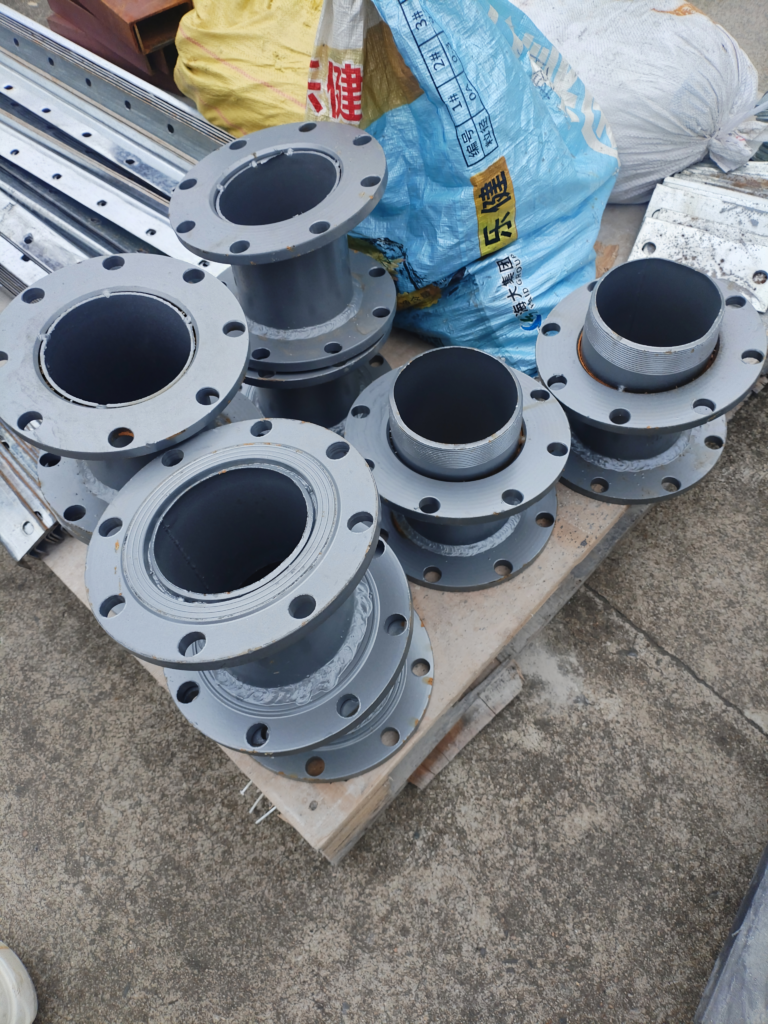

Inlet, outlet, overflow, and drain flanges.
5. Convenience
Internal and external ladders, a lockable manhole cover, an air vent, and a water level indicator with glass tube or magnetic options.
Installation Method
The modular nature allows for quick assembly. A typical process involves:
Laying out the concrete plinths prepared by the client.
Assembling the steel base frame on the concrete plinths.
Installing and securing the bottom FRP panels.
Erecting the side panels layer by layer, applying sealing tape, and securely bolting the panels together.
Installing the internal tie rods to provide structural integrity against water pressure.
Installing the roof panels and accessories, including the manhole cover, ladders, and air vents.
Connecting the inlet, outlet, overflow, and drain fittings, followed by a complete leak test.
