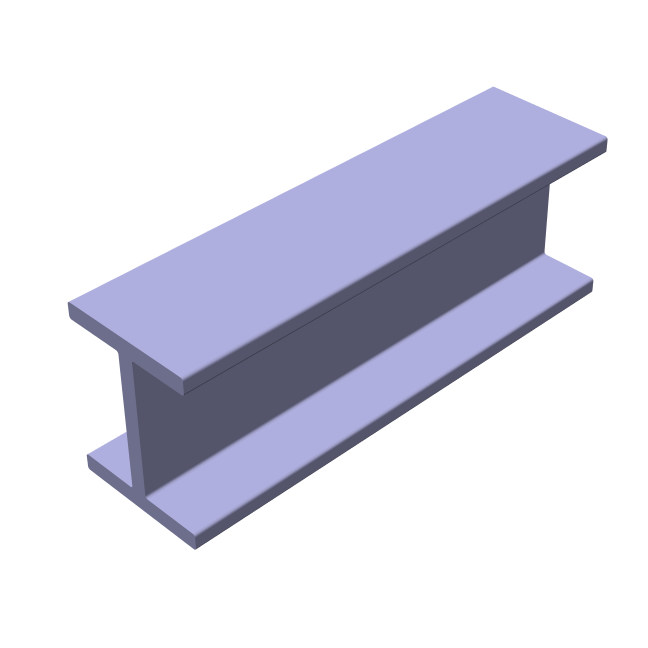

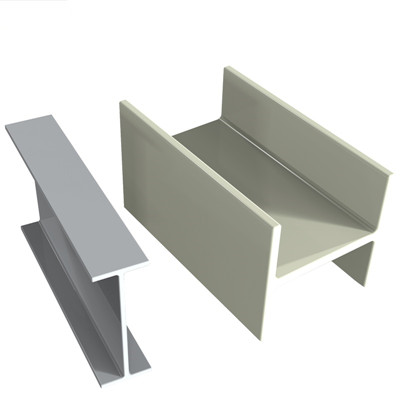

Fiberglass I Beam/ H Beam Available:
| Fiberglass I Beam/ H Beam | |||

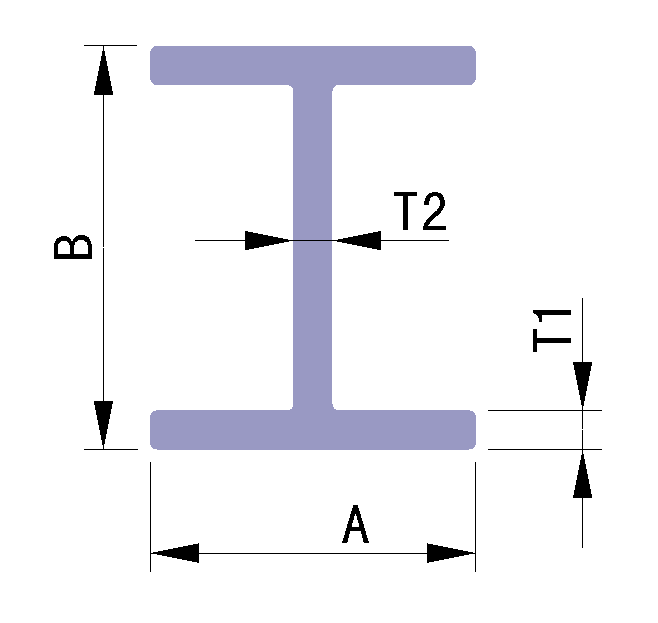

| A(inch) | B(inch) | T1(inch) | T2(inch) |
| 0.49 | 0.98 | 0.16 | 0.16 |
| 0.59 | 0.98 | 0.13 | 0.13 |
| 0.59 | 1.50 | 0.16 | 0.16 |
| 0.59 | 2.28 | 0.16 | 0.16 |
| 0.59 | 2.76 | 0.24 | 0.24 |
| 0.98 | 0.98 | 0.12 | 0.12 |
| 0.98 | 1.18 | 0.13 | 0.13 |
| 1.06 | 1.26 | 0.20 | 0.20 |
| 1.18 | 1.50 | 0.16 | 0.16 |
| 1.18 | 3.15 | 0.13 | 0.13 |
| 1.22 | 2.56 | 0.20 | 0.18 |
| 1.57 | 1.57 | 0.56 | 0.56 |
| 1.93 | 1.93 | 0.56 | 0.56 |
| 1.97 | 3.94 | 0.20 | 0.20 |
| 2.05 | 4.02 | 6.4 | 6.4 |
| 0.24 | 4.72 | 0.24 | 0.24 |
| 2.48 | 2.48 | 0.14 | 0.14 |
| 2.99 | 5.98 | 0.25 | 0.25 |
| 3.94 | 4.13 | 0.24 | 0.24 |
| 3.94 | 7.87 | 0.39 | 0.39 |
| 4.92 | 5.91 | 0.39 | 0.39 |
| 4.92 | 5.91 | 0.47 | 0.47 |
| 5.91 | 11.81 | 0.59 | 0.59 |
| 7.99 | 7.99 | 0.47 | 0.47 |
Fiberglass I Beam/ H Beam Available:
| Fiberglass I Beam/ H Beam | |||
| A(mm) | B(mm) | T1(mm) | T2(mm) |
| 12.5 | 25 | 4 | 4 |
| 15 | 25 | 3.2 | 3.2 |
| 15 | 38 | 4 | 4 |
| 15 | 58 | 4 | 4 |
| 15 | 70 | 6 | 6 |
| 25 | 25 | 3 | 3 |
| 25 | 30 | 3.2 | 3.2 |
| 27 | 32 | 5 | 5 |
| 30 | 38 | 4 | 4 |
| 30 | 80 | 3.2 | 3.2 |
| 31 | 65 | 5 | 4.5 |
| 40 | 40 | 3 | 3 |
| 49 | 49 | 3 | 3 |
| 50 | 100 | 5 | 5 |
| 52 | 102 | 6.4 | 6.4 |
| 60 | 120 | 6 | 6 |
| 63 | 63 | 3.5 | 3.5 |
| 76 | 152 | 6.4 | 6.4 |
| 100 | 105 | 6 | 6 |
| 100 | 200 | 10 | 10 |
| 125 | 150 | 10 | 10 |
| 125 | 150 | 12 | 12 |
| 150 | 300 | 12 | 12 |
| 200 | 200 | 15 | 15 |
| 203 | 203 | 12 | 12 |
Many additional sizes are available.
Pultruded fiberglass beams are composite materials made of glass fiber as a reinforcing matrix material and a
thermosetting resin as a matrix bonding material, and are formed by a continuous pultrusion process.
Properties of FRP beams include:
- Corrosion resistant
- Non-conductive thermally & electrically
- Non-magnetic electromagnetic transparency
- Lightweight
- High-strength
- Dimensional stability
- Long life cycle
- Low-maintenance
We also can fabricate custom sizes to fit your needs.
-
