Fiberglass Square Tubes

time:2020-6-10

Fiberglass Square Tube Available:

Fiberglass Square Tube

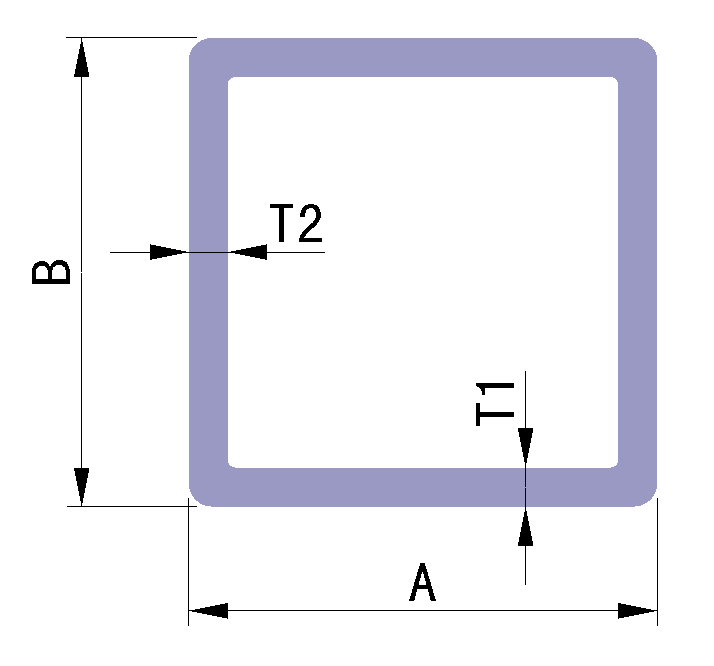

A(inch) B(inch) T1(inch) T2(inch)
0.90 0.90 0.10 0.10
1.18 1.18 0.10 0.10
1.26 1.26 0.12 0.12
1.73 1.73 0.24 0.24
1.97 1.97 0.14 0.14
2.17 2.17 0.16 0.16
2.36 2.36 0.20 0.20
2.95 2.95 0.24 0.24
2.99 2.99 0.25 0.25
3.94 3.94 0.24 0.24
4.49 4.49 0.31 0.31
4.72 4.72 0.31 0.31
5.12 5.12 0.35 0.35
6.30 6.30 0.31 0.31
7.24 7.24 0.10 0.10
0.83 0.83 0.12

0.12

Fiberglass Square Tube Available:

Fiberglass Square Tube
A(mm) B(mm) T1(mm) T2(mm)
22.8 22.8 2.5 2.5
30 30 2.5 2.5
32 32 3 3
44 44 6 6
50 50 3.5 3.5
55 55 4 4
60 60 5 5
75 75 6 6
76 76 6.4 6.4
100 100 6 6
114 114 8 8
120 120 8 8
130 130 9 9
160 160 8 8
184 184 2.5 2.5
241 241 3 3

Many additional sizes are available.



Fiberglass square tubes can be used as handrails, electrical applications where electrical conductivity could be dangerous, in caged or straight ladders, as structural framing or as columns.
