Fiberglass Channels

time:2020-6-10

Fiberglass Channels Available:

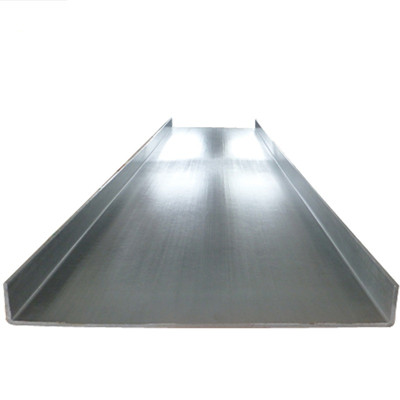

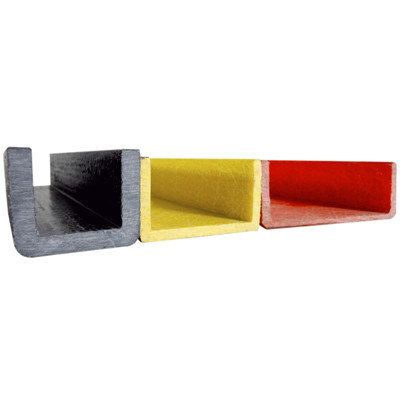

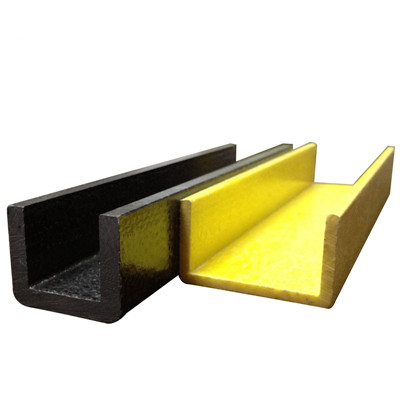

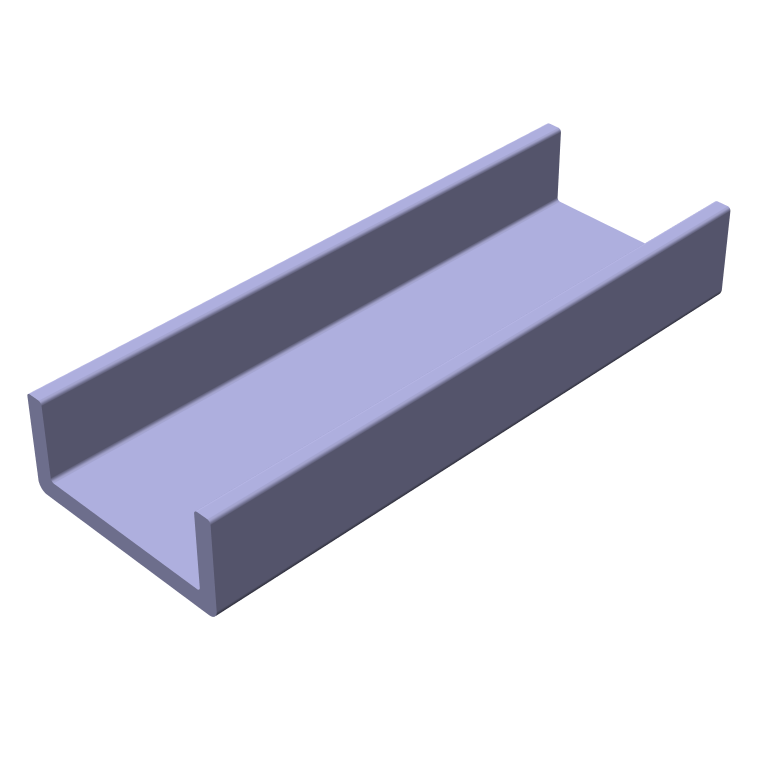

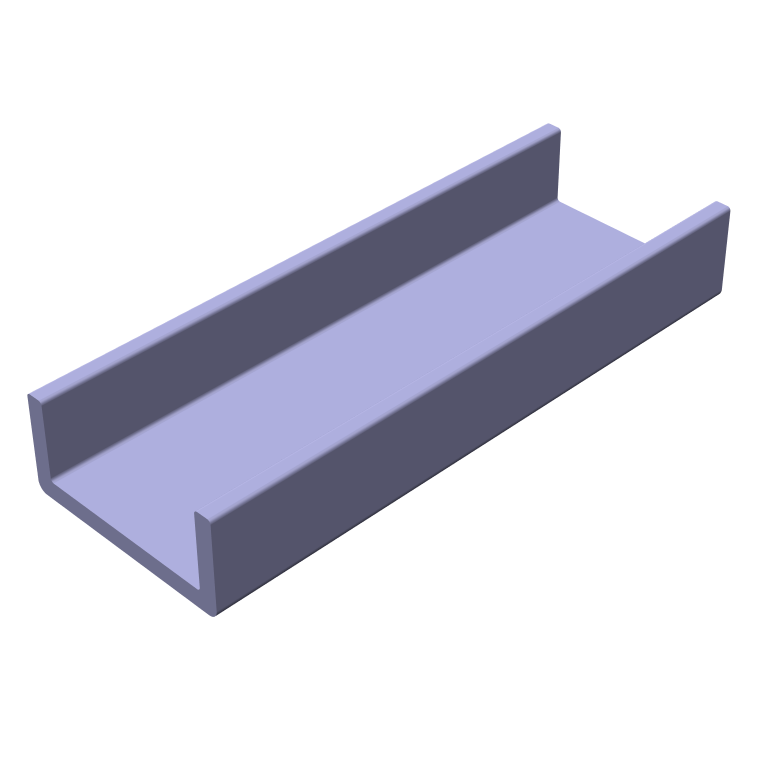

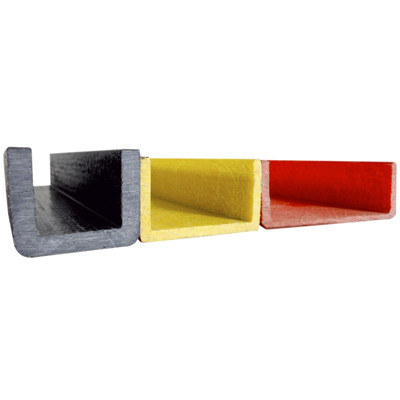

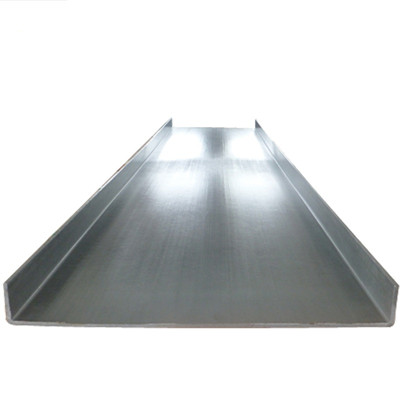

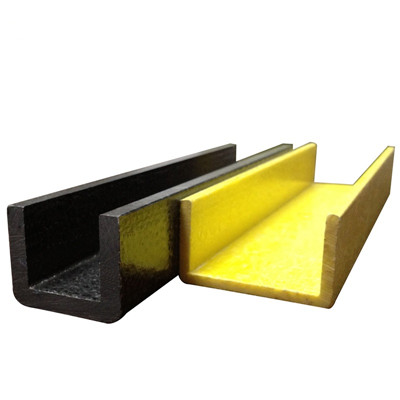

Fiberglass Channel

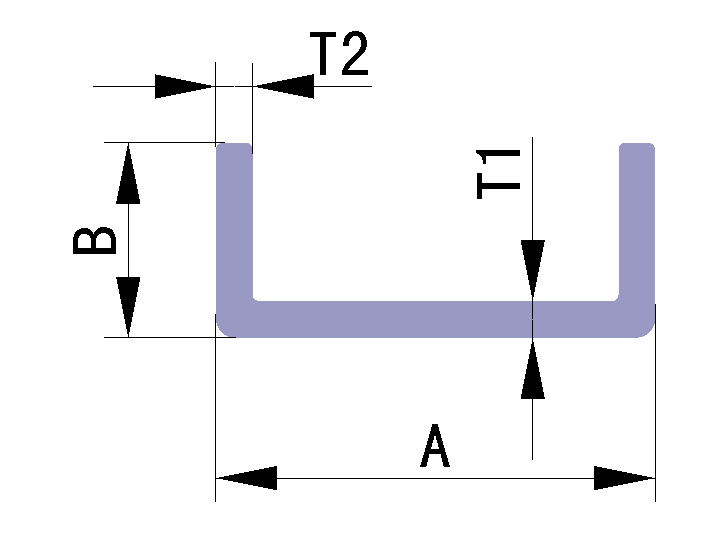

A(inch) B(inch) T1(inch) T2(inch)
0.71 0.31 0.06 0.06
0.91 0.98 0.12 0.12
1.29 1.12 0.12 0.12
1.31 0.79 0.12 0.12
1.38 0.33 0.10 0.10
1.77 1.26 0.10 0.16
1.80 1.68 0.10 0.10
49.8 19.3 0.10 0.10
2.20 2.09 0.12 0.12
2.32 0.75 0.10 0.10
3.22 0.99 0.16 0.16
3.29 1.18 0.14 0.20
3.39 1.30 0.16 0.16
3.39 1.18 0.28 0.31
3.39 1.22 0.16 0.20
3.54 1.02 0.25 0.10
3.75 1.5 0.10 0.10
3.94 1.97 0.25 0.25
3.94 3.82 0.12 0.12
4.02 1.14 0.25 0.25
4.02 1.38 0.19 0.19
4.72 1.97 0.24 0.24
5 1.38 0.26 0.26
5.99 1.61 0.25 0.25
6.10 0.96 0.15 0.15
6.10 1.57 0.37 0.37
7.40 3.54 0.31 0.31
7.87 1.97 0.39 0.39
7.87 2.36 0.39 0.39
7.99 2.17 0.25 0.25
9.45 2.83 0.31 0.31
9.84 2.12 0.16 0.16
9.84 4.92 0.39 0.39
10.04 2.95 0.5 0.5
11.81 3.94 0.39 0.39
19.67 2.36 0.39

0.39

Fiberglass Channels Available:

Fiberglass Channel
A(mm) B(mm) T1(mm) T2(mm)
18 8 1.5 1.5
23 25 3 3
31.5 28.5 3 3
33.4 20 3 3
35 8.4 2.5 2.5
45 32 2.5 4
45.5 42.5 2.5 2.5
49.8 19.3 2.5 2.5
56 53 3 3
59 19 2.5 2.5
82 25 4 4
83.5 30 3.5 5
86 33 4 4
86 30 7 8
86 31 4 5
90 26 6.3 2.5
95.2 38.1 2.5 2.5
100 50 6.4 6.4
100 97 3 3
102 29 6.4 6.4
102 35 4.8 4.8
120 50 6 6
127 35 6.5 6.5
152 41 6.4 6.4
155 24.5 3.8 3.8
155 40 9.5 9.5
188 90 8 8
200 50 10 10
200 60 10 10
203 55 6.35 6.35
240 72 8 8
250 54 4 4
250 125 10 10
255 75 12.7 12.7
300 100 10 10
500 60 10 10

Many additional sizes are available.



Pultruded fiberglass channels are particularly useful in applications in which metals can’t provide an ideal solution, e.g., where corrosion is a concern or lightweight structural shapes are required for easy installation

One of the most common applications of fiberglass strut channels is in harsh environment which are subject to chemical exposure. Some of these are such as outdoor walkways, water treatment plants, among others.

They are also used in several outdoor activities such as in arrow shaft, crossbows, paddle shafts, hocky stick, golf shaft, kick board among others.
