Fiberglass Rectangular Tubes

time:2020-6-10

Fiberglass Rectangular Tubes Available:

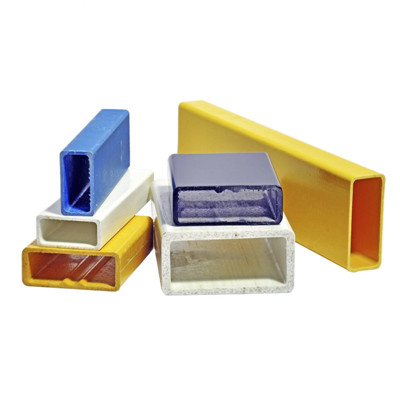

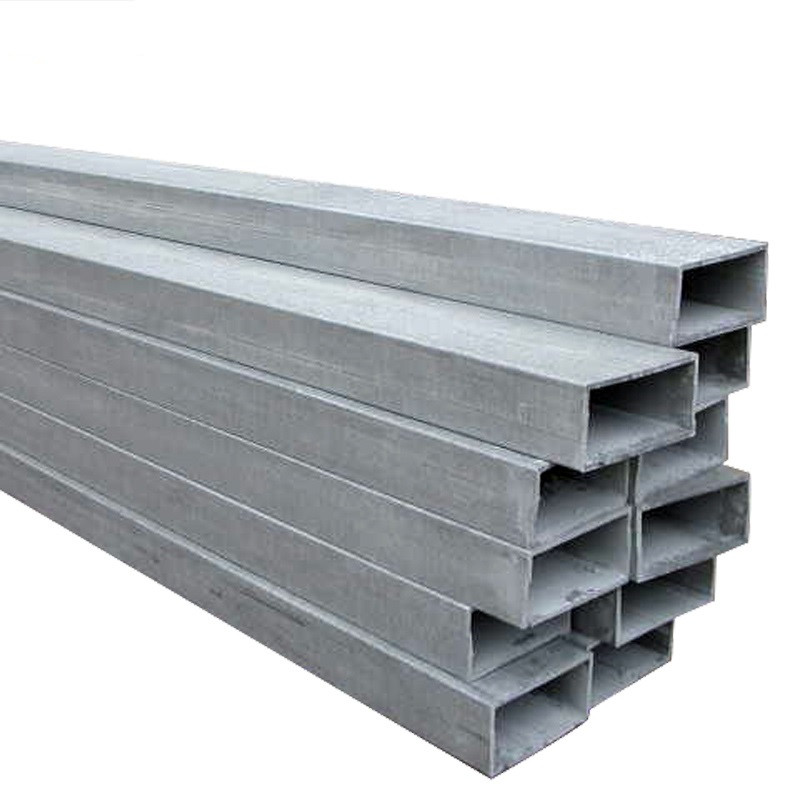

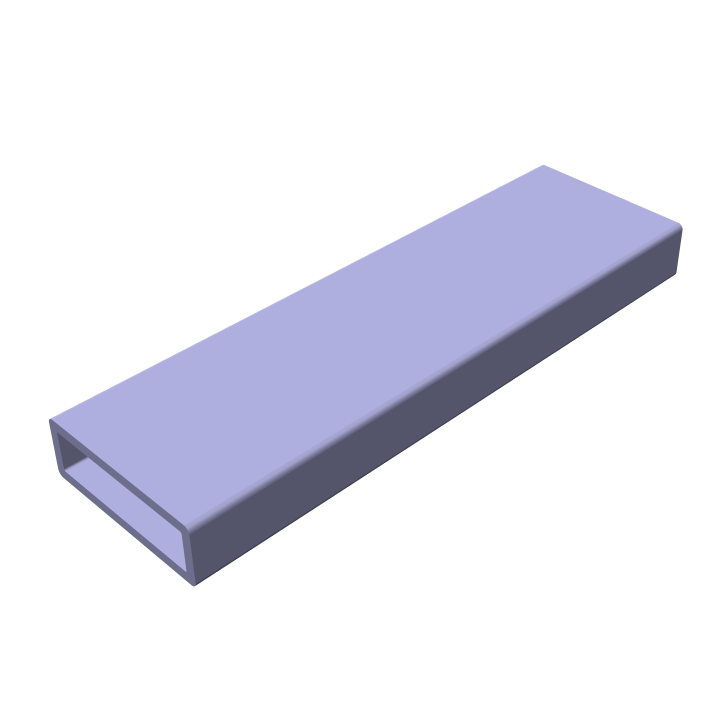

Fiberglass Rectangular Tube

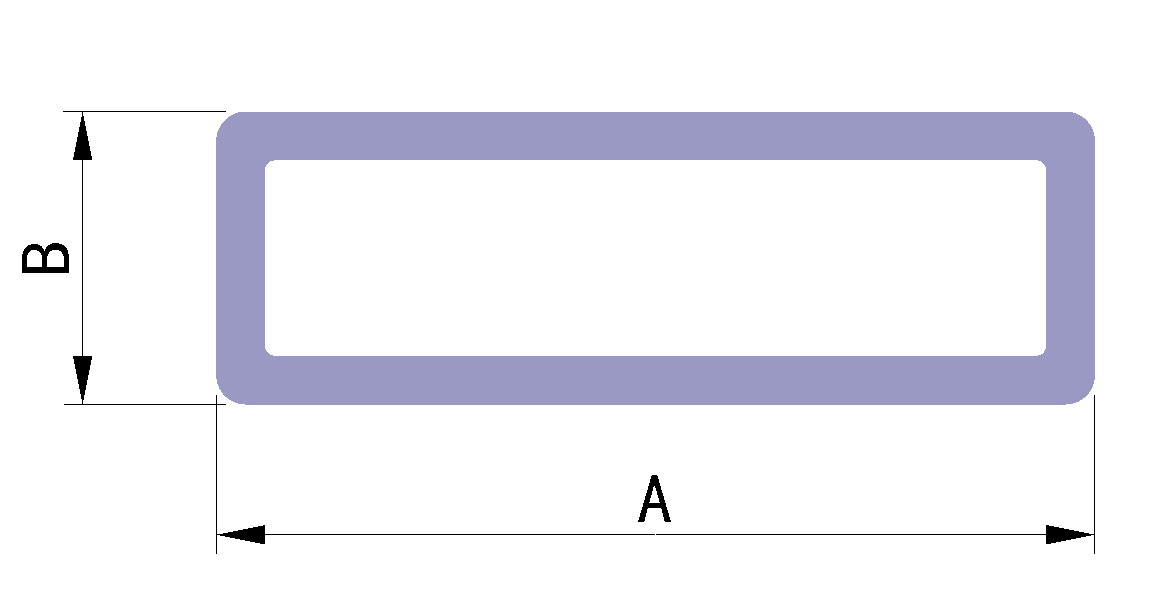

A(inch) B(inch)
1.77 0.59
1.97 0.98
2.30 1.00
2.87 0.98
2.99 1.18
3.15 2.36
3.23 1.18
3.43 1.26
3.54 1.34
3.89 1.75
3.94 1.97
4.41 3.62
4.72 3.15
4.72 3.94
5.75 1.75
5.98 2.99
7.48 1.54
7.87 1.77
8.07 1.04
9.92 1.77
11.81 5.91
15.75 5.91
15.75 9.84

Fiberglass Rectangular Tubes Available:

Fiberglass Rectangular Tube
A(mm) B(mm)
45 15
50 25
58.4 25.5
73 25
76 30
80 60
82 30
87 32
90 34
95.3 44.5
100 50
112 92
120 80
120 100
146 44.5
152 76
190 39
200 45
205 26.4
252 45
300 150
400 150
400 250

Many additional sizes are available.



Fiberglass rectangular tube is not only widely used in our daily life, also used in a variety of insulation, mechanical structural components and other structural components. And with a uniform color inside and outside, and the color can be customized according to the customer’s requirements to adapt to the environment.

FRP Rectangular Tube advantages:

1. High strength and Light weight

2. No deformation

3. High temperature resistant

4. Low water absorption

5. Strong corrosion resistance

6. Other Excellent Performance
